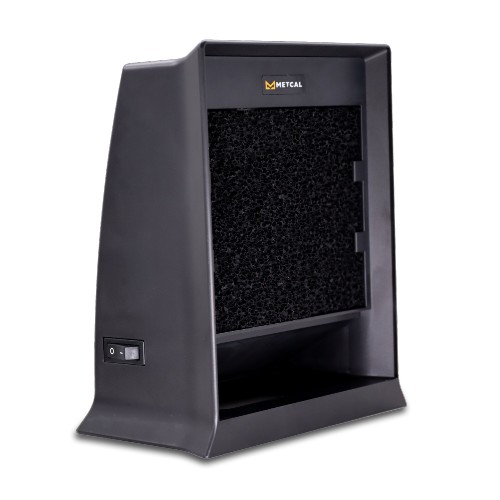

METCAL Smoke Absorber (Small)
Low noise of the product; Capable of absorbing and filtering various welding fumes;
Vertical and HorizontalTwo ways of absorption, providing flexible applications; stayEasy to replace filter consumables while ensuring safe use,
Still maintaining the Metcal smoke purification seriesAnti static electricitySecurity performance.
MSA-35L Product Features
Can provide 120V and 230V power configurations
Compact and compact in appearance, saving space
Specially designed for desktop smoke solutions
Both vertical and horizontal application methods are applicable simultaneously:
Vertical applications provide a larger smoke absorption area; 1.1 m3/min（38 cfm)
Horizontal application provides a more directional absorption path and higher flow rate; 0.5 m 3/min (18 cfm) side power on/off switch.
Product specifications
Features MSA-35L-22
power25 W
Vertical application suction ability0.9 m3/min (32 cfm)
Horizontal application absorption ability0.45 m3/min (16 cfm)
noise<-45 dBA – 51 dBA
Power frequency50 Hz
supply voltage220 VAC
Safety CompliancesizeH/W/D (mm)217 (H) x 186 (W) x 111 (D)
sizeH/W/D (inches)8.54” (H) x 7.32” (W) x 4.37” (D)
weight0.91 kg / 2.0 lbs.
